Description | Specification/scope of supply |
| Max component length | 810mm |
| Max component width | 520mm |
| Max component thickness | 50mm |
| Max component weight | 25kg – UDL (Uniformly Distributed Load) |
| Measuring accuracy, length & width** | +/- 100/200µm |
| Measuring accuracy, height** (Optional) | +/- 300 µm |
| Measuring speed** | <0.25sec |
| Camera | Industrialised ultra high resolution professionally mounted in sealed enclosure |
| Computer processor | Intel Quad Core |
| Processor speed | 2GHz |
| Hard disk | <256Gb |
| Screen | 24 inch flatscreen |
| Peripheral equipment | Keyboard and optical mouse |
| Operating software | Windows 10- 64 Bit |
| Proprietary InspecVision software | 2D & 3D Inspection, SPC, Reporting, Reverse engineering |
| Data cable | USB2 or USB3 |
| KVM | Keyboard, Video Display & Mouse stand (PC integrated into light table assembly) |
| Light table construction | Frame with removable sheet metal cladding |
| Light source | High efficiency LEDs |
| Power supply | 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request |
| Power consumption | 5 Amp maximum at 230 Volt, 10 Amp max at 110 Volt |
| Control panel | Control switches for computer and projector power and USB port |
| EC directives | Compliant with Machinery, Low voltage and EMC Directives |
| Paint colour (powder paint) | RAL5013 (cobalt blue) |
| Ambient operating conditions | 10-30 degree C |

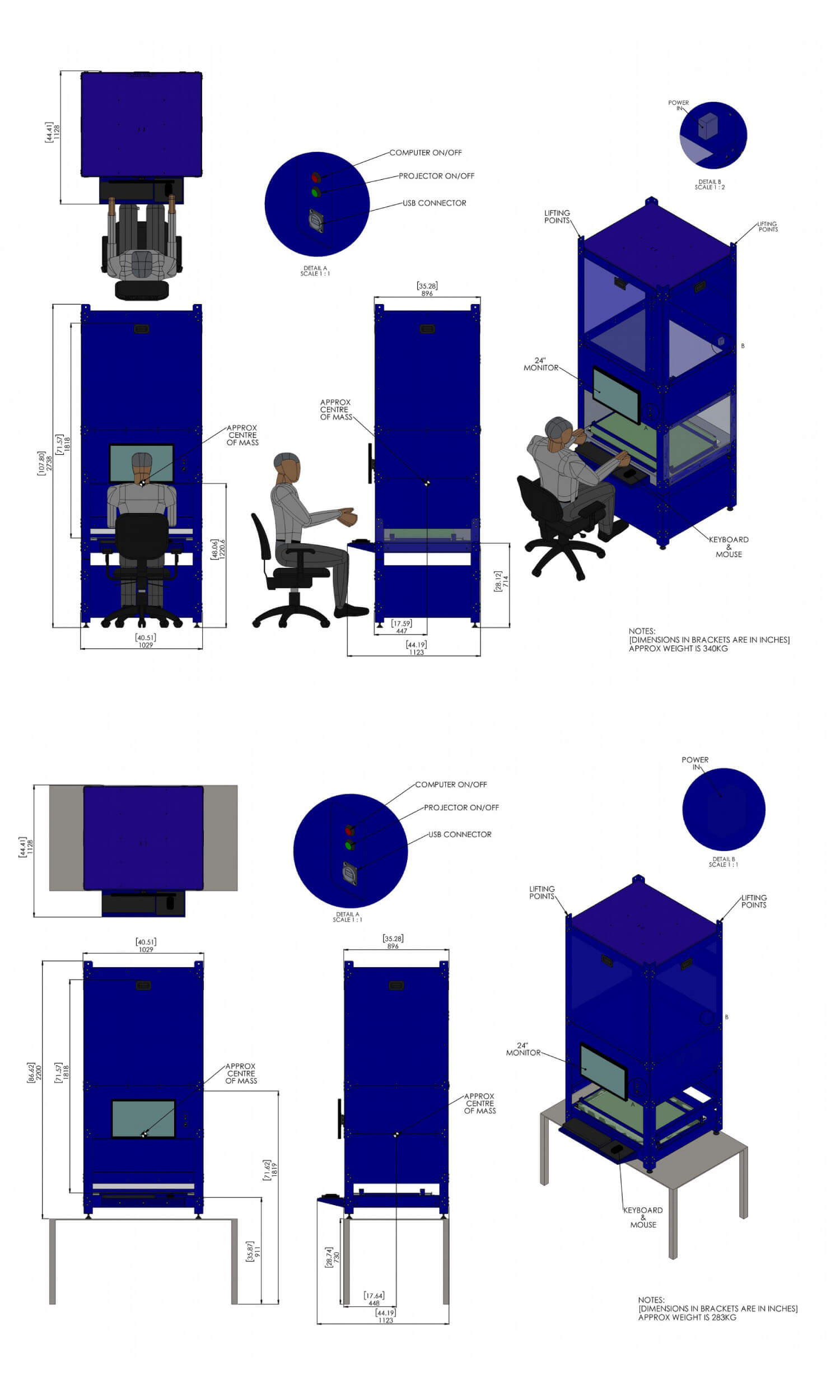

| Approx Footprint/installed width/ depth/ height/weight of installed System | 1029mm (W) x 1123mm (D) x 2200mm (H) approx weight 300kgs |
| Approx Footprint/installed width/ depth/height / weight including optional stand) | 1029mm (W) x 1123mm (D) x 2738mm (H) approx weight 350kgs |
| Warranty | One year limited warranty on hardware and software |
| Optional extended warranty | Two or three year extended warranty (requires software upgrade option) |
| Software support option | Annual support contract provides free software upgrades |
| Installation | Plug & Play |
