Specification/scope of supply

Max component length1000mm
Max component width667mm
Max component thickness350mm
Max component weight50kg – UDL (Uniformly Distributed Load)
Measuring accuracy, length & width**+/- 20 / 40µm*
Measuring speed**<0.25sec
Measuring speed** <0.25sec
CameraIndustrialised ultra high resolution mounted in a protective enclosure
Computer processorIntel Quad Core
Processor speed>2GHz
Hard disk>80Gb
Screen20 inch flat screen or better
Peripheral equipmentKeyboard and optical mouse
Operating softwareWindows 10- 64 Bit
Proprietary InspecVision softwareInspection, SPC, Reporting, Reverse engineering
Computer cabinet (Optional)Industrial dust-proof enclosure
Data cableUSB2 or USB3
Light table constructionWelded Steel Enclosure
Light table measuring surfaceLaminate glass, toughened with integral diffusion layer
Light sourceHigh efficiency LEDs
Mast constructionExtruded aluminium
Power supply230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request
Power consumption4 Amp maximum at 230 Volt, 7 Amp max at 110 Volt
Control panel Control switches for power, camera and lights
EC directivesCompliant with Machinery, Low voltage and EMC Directives
ColourNatural aluminium and RAL 5013 (cobalt blue)
Ambient operating conditions10-30 degree C

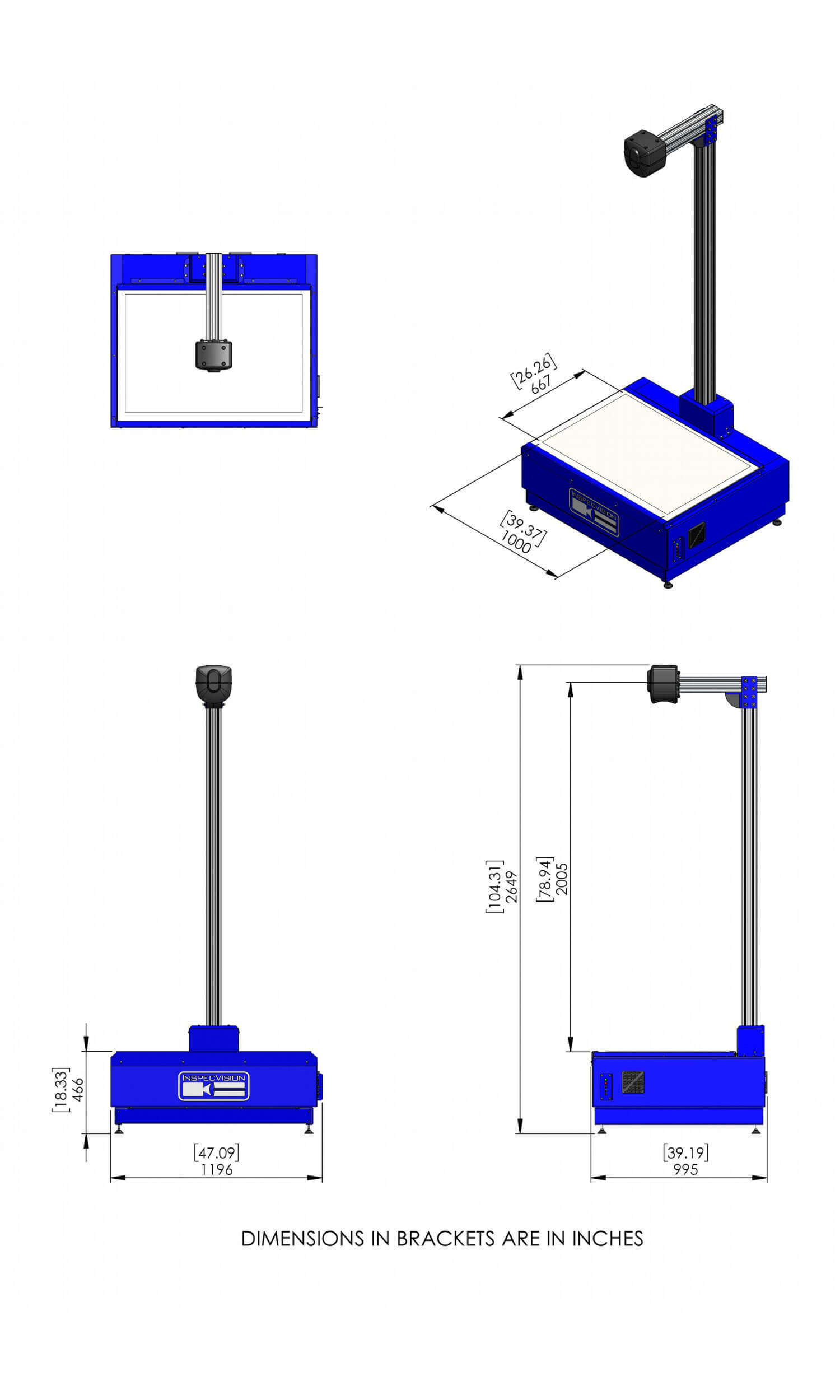

Approx Footprint/installed width/ depth/ height/weight of installed System 1196mm (W) x 995mm (D) x 2649mm (H) 200kgs
Approx Footprint/installed width/ depth/ height/weight of installed Computer Cabinet(inc keyboard tray) Optional 587mm (W) x 900mm (D) x 1675 (H) <100kgs
Standard packing Wooden crate
WarrantyOne year limited warranty on hardware and software
Optional extended warrantyTwo or three year extended warranty (requires software upgrade option)
Software support optionAnnual support contract provides free software upgrades
