PRODUCT DETAILS

The GNSS Land Survey Optical Instruments Own GNSS Main Board


  • • High-precision board design based on GNSS System-on-Chip
  • • Latest GNSS module
  • • 1408 channels
  • • Receives all GNSS satellites and signal types
  • • Independent tracking of various frequencies
  • • Interference measurements of unwanted frequencies

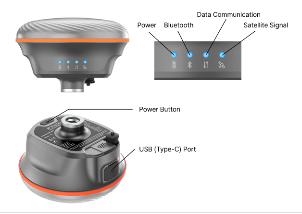

Hardware Components


  • • 4 LEDs on the front panel
  • • USB C-Type port for charging

IMU Technology of GNSS Land Survey Optical Instruments


  • • Supports tilted measurement
  • • Fast and precise surveys
  • • Fast initialization and accurate measurements
  • • Up to 60° inclination

Lightweight and IMU Tilt Sensor


  • • 135mm × 88.2mm compact size for improved portability
  • • Lightweight (793g)
  • • Easy IMU calibration for flexible and convenient tilt measurements

High-Quality Components


  • • High-quality SAMSUNG lithium-ion battery
  • • 6,700mAh battery pack for long-term use
  • • Die-cast structure
  • • Dual elastomer construction
  • • Powder coating finish
  • • IP67 protection grade

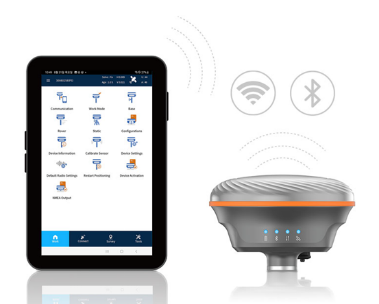

Android-Based Field Software – Pad


  • • Compatible with Android smartphones and tablets
  • • Collects control and survey data for mapping and drawing
  • • Graphic interface with intuitive menu settings
  • • English and Korean language options
  • • Bluetooth remote control
  • • Customizable software
