FreeScan UE Pro
The FreeScan UE Pro is equipped with 26+5+1 blue laser lines and a built-in photogrammetric module. Combining speed, accuracy, and detailed scanning, this professional 3D metrology solution supports various applications from metrology-grade inspection to reverse design and additive manufacturing.
- High Precision: Accuracy up to 0.02mm, delivering consistent and precise scanning results.
- Global Precision Control: Integrated photogrammetry function quickly locks the spatial position of the target frame without the need for coded targets.
- Lightweight and Ergonomic Design: Weighing only 840g, it features a user-friendly scanning software that shortens the learning curve.
- Multiple Scanning Modes: Includes 13 cross laser lines for large objects, 5 parallel laser lines for fine details, and a single laser line for deep hole and pocket area scanning.
- Rich Detail Scanning: Higher resolution cameras and 5 parallel laser lines enable accurate restoration of fine details.
- Wide Material Adaptation: Supports scanning of black and high-reflective surfaces for a more efficient process.
- Built-In Photogrammetry: Patented built-in scale bar photogrammetry module increases volumetric accuracy.
- Seamless Software Integration: Scan data can be easily imported into mainstream 3D inspection and design software such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect.
Model: FreeScan UE Pro
Accuracy: Up to 0.02mm
Scan Speed: Up to 1,850,000 points/sec
Max Scan Range: 600 mm x 550 mm
Working Distance: 300mm
Scan Depth: 200mm
Volumetric Accuracy: 0.02+0.03 mm/m (standard mode); 0.02+0.015 mm/m (built-in photogrammetry mode)
Connection Standard: USB 3.0
Weight: 840g
Scanning Modes
Multiple Lines Scan: 26 laser lines for large object scanning.
Single Line Scan: Single laser line for deep hole and pocket area scanning.
Fine Scan: 5 parallel laser lines for capturing intricate details.
Software Features
Over-the-Air Updates: Notifications for direct download of free software updates.
Real-Time Data Visualization: Intuitive software displays 3D data in real-time, guiding users through the scanning process.
Output Formats: Supports mainstream formats for seamless integration with other software.
Optimized Algorithms: Ensure high-speed data acquisition and accurate scanning results.

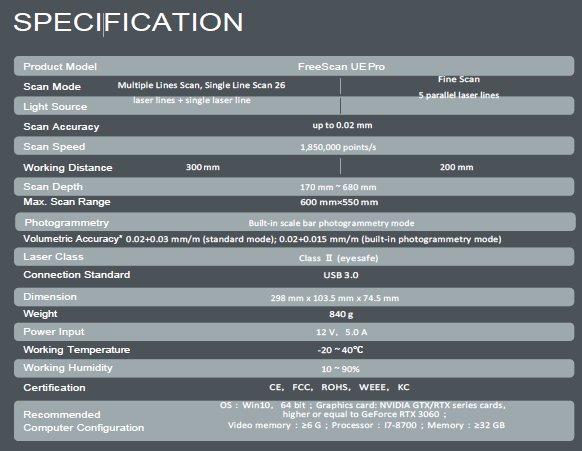

Specifications
Dimensions: 298 mm x 103.5 mm x 74.5 mm
Weight: 840g
Power Input: 12V, 5.0A
Working Temperature: -20 ~ 40℃
Working Humidity: 10 ~ 90%
Certifications: CE, FCC, ROHS, WEEE, KC
Recommended Computer Configuration:
o OS: Windows 10 (64-bit)
o Graphics Card: NVIDIA GTX/RTX series, GeForce RTX 3060 or higher
o Video Memory: ≥6GB
o Processor: i7-8700 or higher
o Memory: ≥32GB
![Image1](/Content/Images/Product-127-Images/product-127-image2.png)
Applications
The FreeScan UE Pro is suitable for a wide range of industrial applications, including:
- Automotive: Vehicle appearance design, supply chain quality management, production quality control, and car modification.
- Aerospace: Aircraft structure inspection, interior design, engine inspection, and maintenance.
- Manufacturing: Production line assembly and debugging, overall size control, workpiece repair and maintenance.
- Mold Inspection: Tool and mold adjustment, rapid prototyping inspection, and OEM parts remanufacturing.
- Energy: Fluid dynamics analysis, deformation analysis, impeller blade inspection, and virtual assembly.
Experience the advanced capabilities of the FreeScan UE Pro, your ultimate solution for high-precision, multi-functional 3D scanning.
