FreeScan Trio
The FreeScan Trak Pro2 Scanner offers optical 3D measuring and dynamic tracking without the need for markers, ensuring fast and accurate inspections. This portable coordinate measuring system is ideal for a range of applications, providing high precision and repeatability. Paired with the optional FreeProbe, it allows for seamless integration of contact probing into the optical scanning process, enhancing the overall inspection workflow.
- Triple-Camera System: Three 5-megapixel cameras capture the most elaborate details.
- All-in-One 3D Scanner: Four scanning modes and built-in photogrammetry for versatile applications.
- High-Speed Scanning: Delivers up to 3,010,000 points per second, with 98 laser lines for marker-free scanning.
- Unrelenting Accuracy: Provides high precision scanning results with an accuracy of up to 0.02mm.
- Built-In Photogrammetry: Achieves volumetric accuracy of up to 0.02mm + 0.015mm/m.
- Exceptional Detail: Minimum point distance of 0.01mm for intricate details.
- Swift, Effortless Scanning: Optimized software algorithms generate 3D data in real-time.
- Wide Field of View: 650 x 580mm for comprehensive coverage.
Model: FreeScan Trio
Accuracy: Up to 0.02mm
Scan Speed: Up to 3,010,000 points/sec
Cameras: Three 5-megapixel industrial-grade cameras
Max Field of View: 650 x 580mm
Working Distance: 300mm
Point Distance: 0.01-3mm
Volumetric Accuracy: 0.02 + 0.03mm/m (0.02 + 0.015mm/m with photogrammetry)
Laser Class: Class II (eye-safe)
Scanning Modes
Multiple Lines Scan: 98 laser lines for comprehensive and marker-free scanning.
Single Line Scan: Single laser line for deep hole scanning.
Fine Detail Scan: 7 parallel laser lines for capturing intricate details.
26 Laser Lines Mode: Wide field of view for fast data acquisition and real-time 3D data display.
Software Features
Real-Time Display: Intuitive software shows mesh data as you scan.
Data Quality Visualization: Color indicators for monitoring scanning distance and data quality.
Output Formats: Supports .stl, .asc, and .3mf formats.
Optimized Algorithms: Generate 3D data swiftly and accurately.

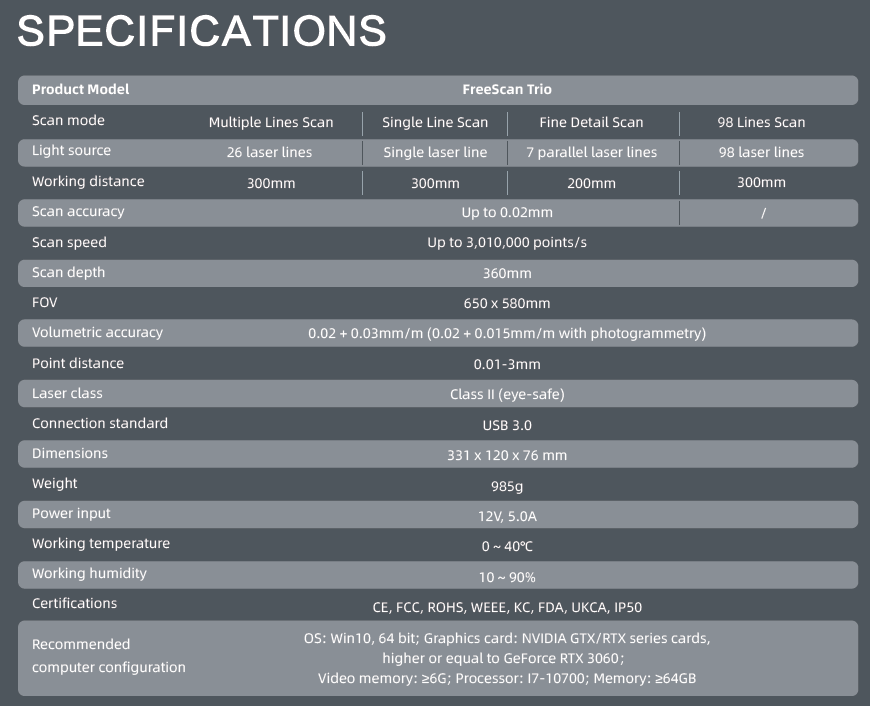

Specifications
Dimensions: 331 x 120 x 76 mm
Weight: 985g
Power Input: 12V, 5.0A
Working Temperature: 0 ~ 40℃
Working Humidity: 10 ~ 90%
Certifications: CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
Recommended Computer Configuration:
o OS: Windows 10 (64-bit)
o Graphics Card: NVIDIA GTX/RTX series, GeForce RTX 3060 or higher
o Video Memory: ≥6GB
o Processor: i7-10700 or higher
o Memory: ≥64GB
Applications
The FreeScan Trio is ideal for a wide range of industrial applications, including:
- • Quality Control
- • 3D Inspection
- • Reverse Engineering
- • Aerospace
- • Automotive
- • Tooling and Molding
- • Medical Devices
Experience the power of three with the FreeScan Trio, your ultimate solution for high-precision, marker-free 3D scanning.
