FreeScan Trak Pro2 Scanner
The FreeScan Trak Pro2 Scanner offers optical 3D measuring and dynamic tracking without the need for markers, ensuring fast and accurate inspections. This portable coordinate measuring system is ideal for a range of applications, providing high precision and repeatability. Paired with the optional FreeProbe, it allows for seamless integration of contact probing into the optical scanning process, enhancing the overall inspection workflow.
- Exceptional Accuracy: Delivers metrology-grade results with accuracy up to 0.023 mm (0.0009 in).
- High-Speed Scanning: Capable of scanning up to 3,070,000 points per second.
- ISO 17025 Accredited: Ensures reliability and quality of measurements.
- Versatile 3D Scanning Modes: Includes modes for quick scans, partial HD scans, and deep hole scans.
- Dual-Camera Tracking System: Utilizes industrial-grade cameras for precise tracking.
- Dynamic Referencing: Operates without markers, saving time and enhancing workflow efficiency.
- Carbon Fiber Frame: Ensures durability and lightweight handling.
- Wide Measuring Range: Capable of handling a broad spectrum of volumes and surfaces.
Model: FreeScan Trak Pro2
Accuracy: Up to 0.023 mm (0.0009 in)
Scan Speed: Up to 3,070,000 points/sec
Cameras: 5.0 MP industrial cameras
Max Field of View: 650 x 580 mm
Tracking System: Dual-camera tracking with dynamic referencing
Frame: Carbon fiber
3D Scanning Modes
50 Crossed Laser Lines: For quick and highly accurate scans.
7 Parallel Laser Lines: For partial HD scans with extremely fine details.
1 Single Laser Line: For deep hole scanning with a hole diameter to depth ratio of 1:4.
Software Features
Robust & Intuitive: Provides real-time display of mesh data and includes a comprehensive toolkit.
Data Quality Visualization: Allows users to monitor scanning distance and data quality through color indicators.
Output Formats: Supports .stl, .asc, and .3mf formats.
Optional Accessory: FreeProbe
Ergonomic Design: Easy to grip and use.
Accurate Measurements: Ensures precise contact probing.
Multifunctional Button: Offers versatile functionality.
Integration: Seamless integration with PolyWorks and ControlX for quick inspections.
Positioning Markers: Enhances accuracy and ease of use.
Ruby Measuring Tip: Durable and precise for various surfaces.

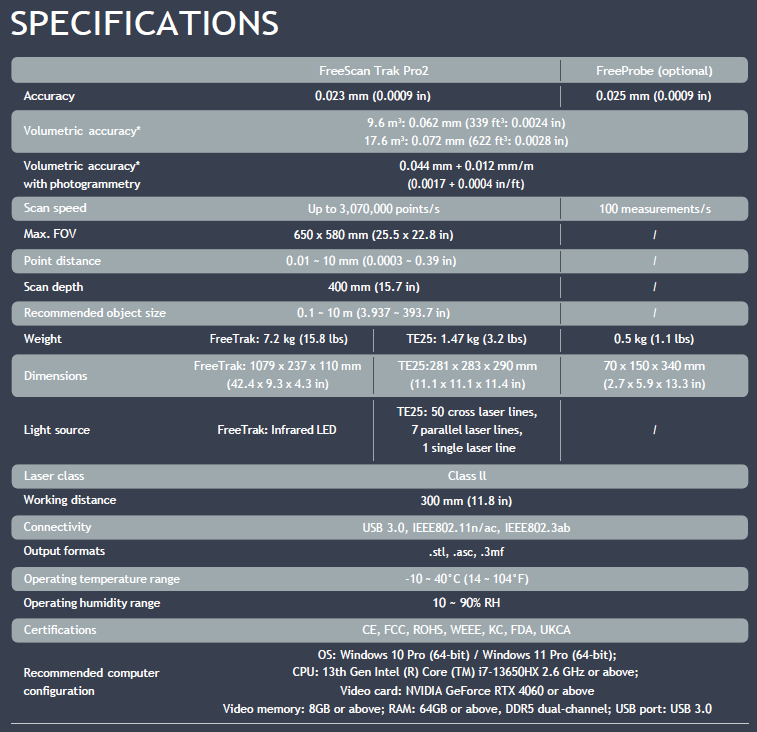

Specifications
Accuracy:
o FreeScan Trak Pro2: 0.023 mm (0.0009 in)
o FreeProbe (optional): 0.025 mm (0.0009 in)
Volumetric Accuracy:
o 9.6 m³: 0.062 mm (0.0024 in)
o 17.6 m³: 0.072 mm (0.0028 in)
o 0.044 mm + 0.012 mm/m (0.0017 + 0.0004 in/ft) with photogrammetry
Working Distance: 300 mm (11.8 in)
Operating Humidity Range: 10 ~ 90% RH
Recommended Computer Configuration:
o OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit)
o CPU: 13th Gen Intel Core i7-13650HX 2.6 GHz or above
o Video Card: NVIDIA GeForce RTX 4060 or above
o Video Memory: 8GB or above
o RAM: 64GB or above, DDR5 dual-channel
o USB Port: USB 3.0
Applications
The FreeScan Trak Pro2 Scanner is perfect for a wide range of applications, including:
- • Quality Control
- • 3D Inspection
- • Precision Manufacturing
- • Aerospace
- • Automotive
- • Tooling and Molding
- • Medical Devices
Enhance your inspection and measurement processes with the FreeScan Trak Pro2 Scanner, offering unmatched precision, speed, and ease of use.
