FreeScan Combo Series
The FreeScan Combo combines a small form factor (193x63x53mm) with advanced scanning capabilities, including four modes: multiple lines scanning, single line scanning, fine scanning, and infrared scanning. It excels in metrology-grade inspections, reverse design, additive manufacturing, and more, catering to automotive, aerospace, mold manufacturing, and medical industries.
- Dual Light Sources: Blue laser + Infrared VCSEL for versatile scanning.
- Four Scanning Modes: Includes 26 laser lines for global scanning, 7 parallel blue laser lines for detailed scans, 1 single blue laser line for deep holes, and infrared scanning.
- High Speed: Up to 1,860,000 points/s for rapid data acquisition.
- Metrology-Grade Accuracy: Achieves up to 0.02mm with volumetric accuracy of 0.02 + 0.033 mm/m.
- Compact and Lightweight: Weighs only 620g, ergonomic for extended use.
- Wide Application Range: Scans black or reflective surfaces without markers.
- Modern Design: Metal case with industrial aesthetics.
- Software Compatibility: Integrates seamlessly with major 3D inspection software, supporting various output formats.
Applications
Automotive: Quality control and design validation.
Aerospace: Structural analysis and part verification.
Mold Manufacturing: Precision mold inspection and adjustment.
Medical: Additive manufacturing and prosthetic design.

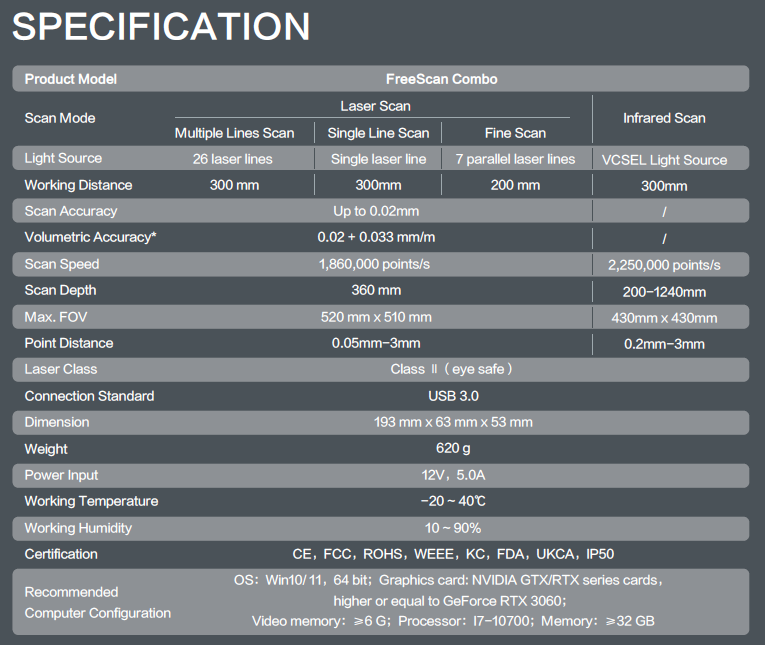

Specifications
Product Model: FreeScan Combo
Light Source: Blue laser + Infrared VCSEL
Scan Modes: Multiple Lines Scan, Single Line Scan, Fine Scan, Infrared Scan
Scan Accuracy: Up to 0.02mm
Volumetric Accuracy: 0.02mm + 0.033 mm/m
Scan Speed: Up to 1,860,000 points/s
Scan Depth: 0.05mm - 3mm
Max. FOV: 520mm x 510mm
Point Distance: 0.05mm - 3mm
Laser Class: Class II (eye-safe)
Connection Standard: USB 3.0
Dimensions: 193 mm x 63 mm x 53 mm
Weight: 620g
Power Input: 12V, 5.0A
Operating Temperature Range: -20°C to 40°C
Operating Humidity Range: 10% to 90%
Certifications: CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
Recommended Computer Configuration: Windows 10/11, 64-bit; NVIDIA GTX/RTX series GPU with ≥6GB VRAM; Intel Core i7-10700 processor; ≥32GB RAM
Experience the cutting-edge capabilities of the FreeScan Combo, your ultimate solution for versatile, high-precision, multi-functional 3D scanning.
