FN 3D Video Microscope
The FN 3D Video Microscope is an advanced tool featuring an infinity optical system with 0.6-5.0X optical zoom. It supports both 2D and 3D observation modes, allowing for a 360-degree rotation and a 45° objective viewing angle. This microscope ensures that the working distance and center position remain constant when switching between 2D and 3D observation modes, providing a seamless experience without the need for focus adjustments.
- Infinity Optical System: Provides 0.7X-4.5X optical zoom magnification.
- Dual Observation Modes: Supports 2D and 3D side view with 360-degree rotation.
- 45° Viewing Angle: Maintains same working distance and center position when switching modes.
- No Focus Adjustment Needed: Ensures best image at any magnification without adjustment.
- Standard C Mount: 0.5X standard CTV mount, with optional mounts available (0.3X, 0.75X, 1X, 1.5X).
- Large Field of View and Depth of View: Full image without dark edges at minimum magnification.
- High Resolution Camera: Equipped with 1/2” HDMI camera offering 1920*1080 resolution.
- USB Storage: Save pictures or videos directly to a USB drive.
- Versatile Applications: Ideal for microelectronics, precision electronics, hardware inspection, deep hole wall inspection, life sciences, morphology studies, and forensic identification.
Model: FN 3D Video Microscope
Optical Magnification: 0.6-5.0X with 0.5X C mount
Total Magnification: 10-89X
Working Distance: 2D: 86mm, 3D: 50mm
Field of View: 2413.5mm to 2.881.62mm
Lens Mount: Standard C mount
Observation Mode: 2D/3D
3D Viewing Angle: 45°
Image Sensor: 1/2” SONY CMOS
Max Resolution: 1920 x 1080
Pixel Size: 3.75μm x 3.75μm
Memory Function: Photo and video storage to USB disk
Output: HDMI
Monitor Specifications
Size: 11.6”
Resolution: 1920*1080
Brightness: 400 cd/m²
Light Source
Light Control: 4-zone control with adjustable brightness
Light Color: White
LED Quantity: 208 LEDs
Color Temperature: 6000-7000K
Input Voltage: 12V
Output Power: 13W
Material: Aluminum shell with metal power box
Diameter: Outer: 118mm, Inner: 19mm
Stand Specifications
Height: 318mm
Focus: Coarse
Post Diameter: φ32mm
Scope Diameter: φ50mm
Optional Accessoriesupdate
CTV Mounts:
- o C6503: Optical mag. 0.18-1.5X
- o C65075: Optical mag. 0.45-3.75X
- o C6510: Optical mag. 0.6-5X
- o C6515: Optical mag. 0.9-7.5X
Applications
The FN 3D Video Microscope is widely used in fields requiring detailed and precise inspections, such as:
• PCB Inspection
• Microelectronics
• Precision Hardware
• Deep Hole Wall Inspection
• Life Sciences
• Morphology Studies
• Forensic Identification

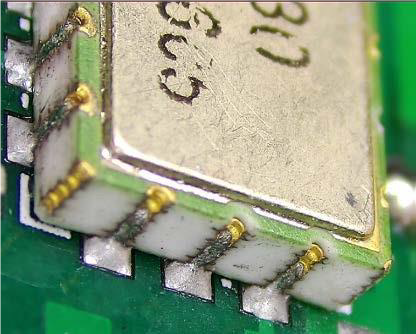

PCB inspection :
Hardware :
Deep hole

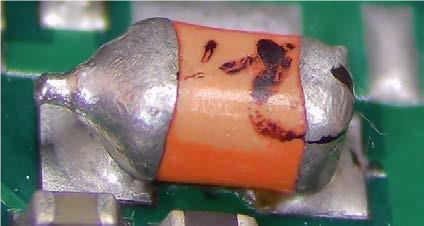

Precision Electronics :
Morphology :
Explore the FN 3D Video Microscope and enhance your inspection capabilities with its advanced features and high-resolution imaging.
