EinScan Libre
EinScan Libre Handheld 3D Scanner The EinScan Libre delivers a fully wireless, standalone 3D scanning experience with its built-in screen and powerful NVIDIA processor. Offering the ideal combination of freedom and efficiency, it ensures reliable results through versatile, user-friendly operation. It is equipped with cto adapt to a wide range of materials. Notably, its laser HD mode scans high-detailed data with textures, even supports texture alignment during scanning. In fact, the EinScan Libre is the world's first laser 3D scanner to offer this feature.
- The EinScan Libre delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor.
- 3 Scan Modes: IR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines & Laser HD: 101 blue laser lines, Suitable for All-Surface Scanning.
- All-Size Scanning: The minimum parts can be captured is around 5cm & big parts up to 10m. The limit can be extended by align multiple projects.
- High Efficiency: Laser HD Mode processes up to 4,500,000 points/s.
- Reliable Results: Achieves a minimum point distance of 0.05mm and an Volumetric Accuracy of up to 0.04 + 0.06 mm/m under laser mode.
- Portable & Easy Operation: User-friendly software and ergonomic design make the EinScan HX easy to use, whether you are a beginner or an experienced professional.
- Full Color Scanning: Built-in color camera supports full-color texture capturing and tracking by texture.

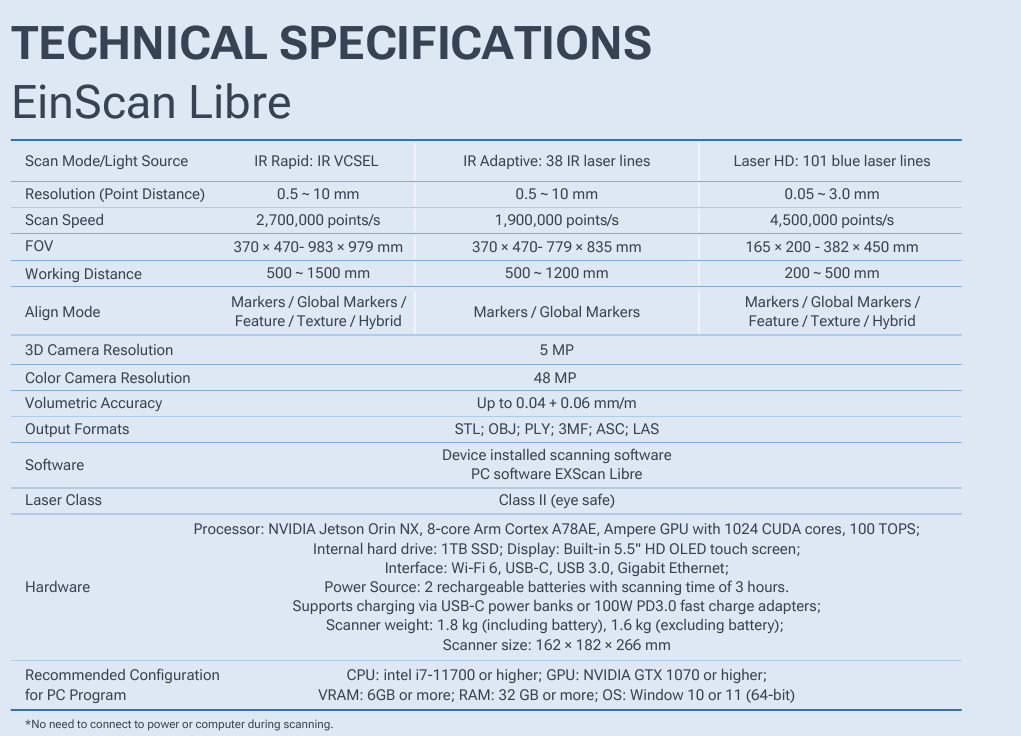

Technical Specifications
Scan Modes:
o IR Rapid
o IR Adaptive
o Laser HD
Volumetric Accuracy: Up to 0.04 + 0.06 mm/m.
Scan Speed:
o IR Rapid: 2,700,000 points/s
o IR Adaptive: 1,900,000 points/s
o Laser HD: 4,500,000 points/s
Resolution:
o IR Rapid: 0.5~10mm
o IR Adaptive: 0.5~10mm
o Laser HD: 0.05~3.0mm
Align Modes:
o IR Rapid: Markers / Global Markers / Feature / Texture / Hybrid
o IR Adaptive: Markers / Global Markers
o Laser HD: Markers / Global Markers / Feature / Texture / Hybrid
Working Distance:
o IR Rapid: 500 ~ 1500 mm
o IR Adaptive: 500 ~ 1200 mm
o Laser HD: 200 ~ 500 mm
Max FOV:
o IR Rapid: 370 × 470- 983 × 979 mm
o IR Adaptive: 370 × 470- 779 × 835 mm
o Laser HD: 165 × 200 - 382 × 450 mm
Light Source
o IR Rapid: IR VCSEL
o IR Adaptive: 38 IR laser lines
o Laser HD: 101 blue laser lines
Safety: Class II (Eye-safe)
Built-in Color Camera: Yes (48 MP)
Output Formats: STL; OBJ; PLY; 3MF; ASC; LAS
Dimensions: 162 × 182 × 266 mm
Weight: 1.8 kg (including battery), 1.6 kg (excluding battery)
Processor: NVIDIA Jetson Orin NX, 8-core Arm Cortex A78AE, Ampere GPU with 1024 CUDA cores, 100 TOPS
Internal hard drive: 1TB SSD
Display: Built-in 5.5'' HD OLED touch screen
Interface: Wi-Fi 6, USB-C, USB 3.0, Gigabit Ethernet
Power Source: 2 rechargeable batteries with scanning time of 3 hours. Supports charging via USB-C power banks or 100W PD3.0 fast charge adapters
Recommended Configuration: CPU: intel i7-11700 or higher; GPU: NVIDIA GTX 1070 or higher; VRAM: 6GB or more; RAM: 32 GB or more; OS: Window 10 or 11 (64-bit)
Applications:

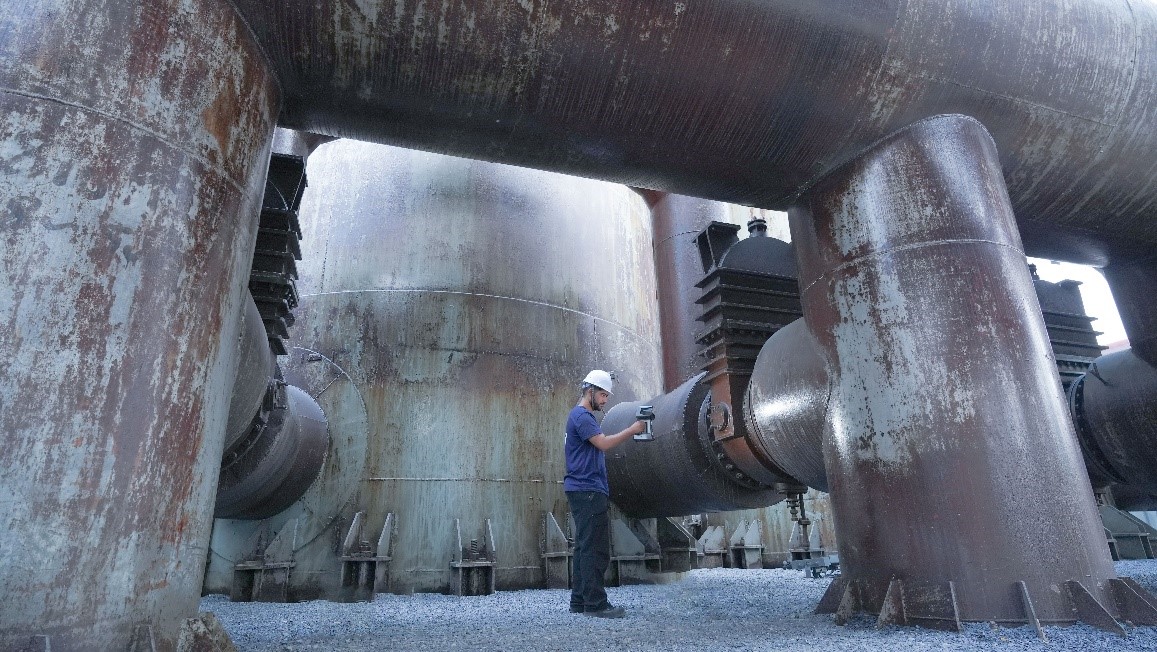

• Large-Scale & Outdoor Scanning: such as forensic sites, quality inspection, reverse engineering, automotive modifications, sculptures, murals, cultural heritage sites, and architecture.
