EinScan HX

Experience the cutting-edge capabilities of the EinScan HX, a hybrid handheld 3D scanner that integrates blue laser and LED light sources for superior performance across a wide range of applications. Whether for reverse engineering, CAD/CAM, or 3D printing, the EinScan HX offers high efficiency, reliable results, and easy operation.

  • • EinScan HX
  • • Hybrid 3D Scanner
  • • Blue Laser 3D Scanner
  • • LED Light 3D Scanner
  • • Handheld 3D Scanner
  • • Reverse Engineering Scanner
  • • CAD/CAM 3D Scanner
  • • 3D Printing Scanner
  • • Industrial 3D Scanner
  • • High Accuracy 3D Scanner

EinScan HX

EinScan HX Handheld 3D Scanner The EinScan HX combines blue LED light and blue laser scanning technologies, making it a versatile and powerful tool for capturing detailed 3D data. This scanner is designed to adapt to various materials and object sizes, ensuring high efficiency and reliable results for diverse industrial applications.


  • Hybrid Blue Laser & LED Light: Integrates dual blue LED light and blue laser to improve scanning material adaptability, allowing for a wider range of applications.
  • High Efficiency: Rapid Scan Mode processes up to 1,200,000 points/s, while Laser Scan Mode offers precise scanning of reflective and dark surfaces.
  • Reliable Results: Achieves a minimum point distance of 0.05mm and an accuracy of up to 0.04mm under laser mode.
  • Portable & Easy Operation: User-friendly software and ergonomic design make the EinScan HX easy to use, whether you are a beginner or an experienced professional.
  • Full Color Scanning: Built-in color camera supports full-color texture capturing and tracking by texture.

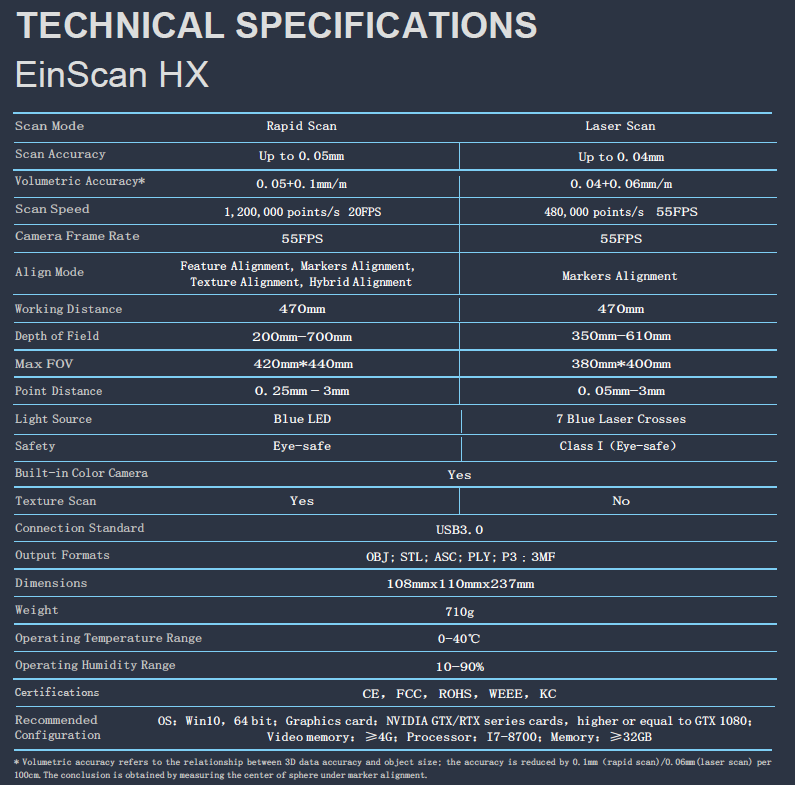

Technical Specifications

Scan Mode:
o Rapid Scan
o Laser Scan
Scan Accuracy:
o Rapid Scan: Up to 0.05mm
o Laser Scan: Up to 0.04mm
Volumetric Accuracy:
o Rapid Scan: 0.05+0.1mm/m
o Laser Scan: 0.04+0.06mm/m
Scan Speed:
o Rapid Scan: 1,200,000 points/s, 20FPS
o Laser Scan: 480,000 points/s, 55FPS
Camera Frame Rate: 55FPS
Align Modes: Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment
Working Distance: 470mm
Depth of Field:
oRapid Scan: 200mm-700mm
oLaser Scan: 350mm-610mm
Max FOV:
o Rapid Scan: 420mm*440mm
o Laser Scan: 380mm*400mm
Point Distance:
o Rapid Scan: 0.25mm-3mm
o Laser Scan: 0.05mm-3mm
Light Source:
o Blue LED
o 7 Blue Laser Crosses
Safety:
o Rapid Scan: Eye-safe
o Laser Scan: Class I (Eye-safe)
Built-in Color Camera: Yes (for Rapid Scan)
Connection Standard: USB 3.0
Output Formats: OBJ, STL, ASC, PLY, P3, 3MF
Dimensions: 108mm x 110mm x 237mm
Weight: 710g
Operating Temperature Range: 0-40℃
Operating Humidity Range: 10-90%
Certifications: CE, FCC, ROHS, WEEE, KC
Recommended Configuration:
o OS: Win10/11, 64-bit
o Graphics card: NVIDIA GTX/RTX, RTX2060 or better
o Video memory: ≥6GB
o Processor: Intel I7-11700 or better
o Memory: ≥64GB

*Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm (rapid scan)/0.06mm (laser scan) per 100cm. The conclusion is obtained by measuring the center of the sphere under marker alignment.


Applications:

• Automotive Industry
• Shipbuilding
• Machining
• Education and Research

Discover the advanced capabilities of the EinScan HX, your ultimate solution for high-precision, multi-functional 3D scanning.
