PRODUCT DETAILS

EinScan H2

Introducing the EinScan H2, a high-texture resolution handheld 3D scanner that combines hybrid LED and infrared light sources for superior performance. With its advanced 5MP resolution texture camera and enhanced accuracy, the EinScan H2 is perfect for healthcare, forensic, cultural heritage, digital art, design, and education applications. This versatile and efficient 3D scanning tool is designed to revolutionize your workflow.

  • • EinScan H2
  • • Handheld 3D Scanner
  • • High Texture Resolution 3D Scanner
  • • Hybrid LED and Infrared 3D Scanner
  • • Healthcare 3D Scanner
  • • Forensic 3D Scanner
  • • Cultural Heritage 3D Scanner
  • • Digital Art 3D Scanner
  • • Design 3D Scanner
  • • Education 3D Scanner

EinScan H2

EinScan H2 Handheld 3D Scanner The EinScan H2 improves upon its predecessor with a 5MP resolution texture camera, enhanced accuracy, and three infrared VCSEL projectors for more photorealistic textures and higher-quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces.


  • 5MP Texture Camera: Captures rich, bright colors and clean textures for photorealistic 3D models.
  • Hybrid Light Source: Dual light sources improve scanning efficiency; LED light offers fast 3D scanning with accurate, high-quality data.
  • 3 Infrared VCSEL Projectors: Provide superior material and lighting adaptability, handling various surface types and scanning environments effortlessly.
  • Ultra-wide FOV and Adjustable Working Distance: Adjustable working distance from 200mm to 1500mm and FOV up to 780mm x 900mm for flexibility in scanning volume.
  • Marker-free Scanning: Scans rich geometric features without the need for markers.
  • Optimized for Face and Body 3D Scanning: Flashless infrared technology ensures optimal comfort, advanced hair enhancement algorithm captures light and dark hair, and non-rigid algorithm in IR mode captures 3D body data quickly and seamlessly.

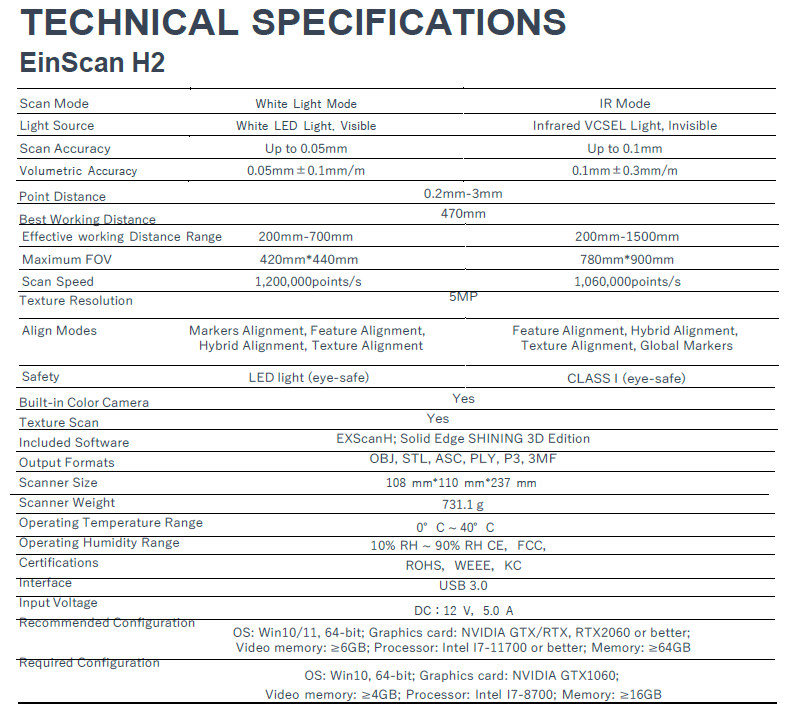

Technical Specifications

Scan Mode:
o White Light Mode
o IR Mode
Light Source:
o White LED Light (Visible)
o Infrared VCSEL Light (Invisible)
Scan Accuracy:
o White Light Mode: Up to 0.05mm
o IR Mode: Up to 0.1mm
Volumetric Accuracy:
o White Light Mode: 0.05mm±0.1mm/m
o IR Mode: 0.1mm±0.3mm/m
Point Distance: 0.2mm-3mm
Best Working Distance: 470mm
Texture Resolution: 5MP
Built-in Color Camera: Yes
Texture Scan: Yes
Included Software: EXScanH; Solid Edge SHINING 3D Edition
Output Formats: OBJ, STL, ASC, PLY, P3, 3MF
Scanner Size: 108mm x 110mm x 237mm
Scanner Weight: 731.1g
Operating Temperature Range: 0°C ~ 40°C
Operating Humidity Range: 10% RH ~ 90% RH
Certifications: CE, FCC, ROHS, WEEE, KC
Interface: USB 3.0
Input Voltage: DC 12V, 5.0A
Recommended Configuration:
o OS: Win10/11, 64-bit
o Graphics card: NVIDIA GTX/RTX, RTX2060 or better
o Video memory: ≥6GB
o Processor: Intel I7-11700 or better
o Memory: ≥64GB
Required Configuration:
o OS: Win10, 64-bit
o Graphics card: NVIDIA GTX1060
o Video memory: ≥4GB
o Processor: Intel I7-8700
o Memory: ≥16GB

Technical Specifications

Monitor: 11.6" Monitor with adjustable arm
Camera: HDMI/USB camera
Focus Holder: Coarse focus holder with reinforcement
Zoom: 0.7X-4.5X
Lighting: LED ring light
Stand Base: 380*260 mm
Stand Height: 320mm


The EinScan H2 offers remarkable scanning capabilities for a wide range of applications, making it an essential tool for professionals in healthcare, forensics, cultural heritage preservation, digital art, design, and education. Explore the advanced features and benefits of the EinScan H2 and elevate your 3D scanning projects to new heights.
