Description | Specification/scope of supply |
| Max component length | 2355mm |
| Max component width | 1570mm |
| Max component thickness | 350mm |
| Max component weight | 500kg UDL (Uniformly Distributed Load) |
| Measuring accuracy, length & width** | +/- 50/100 µm* |
| Measuring accuracy, height** (optional) | +/- 100 µm |
| Measuring speed** | <0.25sec |
| Camera | Industrialized ultra high resolution professionally mounted in sealed enclosure |
| Computer processor | Intel Quad Core |
| Processor speed | >3GHz |
| Hard disk | >125Gb |
| Screen | 20 inch flatscreen or better |
| Peripheral equipment | Keyboard and optical mouse |
| Operating software | Windows 10 64 Bit |
| Proprietary InspecVision software | Inspection, SPC, Reporting, Reverse engineering |
| Computer cabinet (Optional) | Industrial dust-proof enclosure |
| Data cable | USB2 or USB3 |
| KVM | Keyboard, Video Display & Mouse stand (PC integrated into light table assembly) |
| Light table construction | Frame with removable sheet metal cladding |
| Light table measuring surface | Laminate glass, toughened with integral diffusion layer |
| Light source | High efficiency LEDs |
| Mast construction | Heavy folded sheet metal construction |
| Power supply | 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request |
| Power consumption | 20 Amp maximum at 230 Volt, 30 Amp max at 110 Volt |
| Protective devices | Circuit breakers, mounted at rear of light table |
| Control panel | Control switches for power, camera and lights. Main power indicator |
| EC directives | Compliant with Machinery, Low voltage and EMC Directives |
| Paint colour (powder paint) | RAL5013 (cobalt blue) |
| Ambient operating conditions | 10-30 degree C |

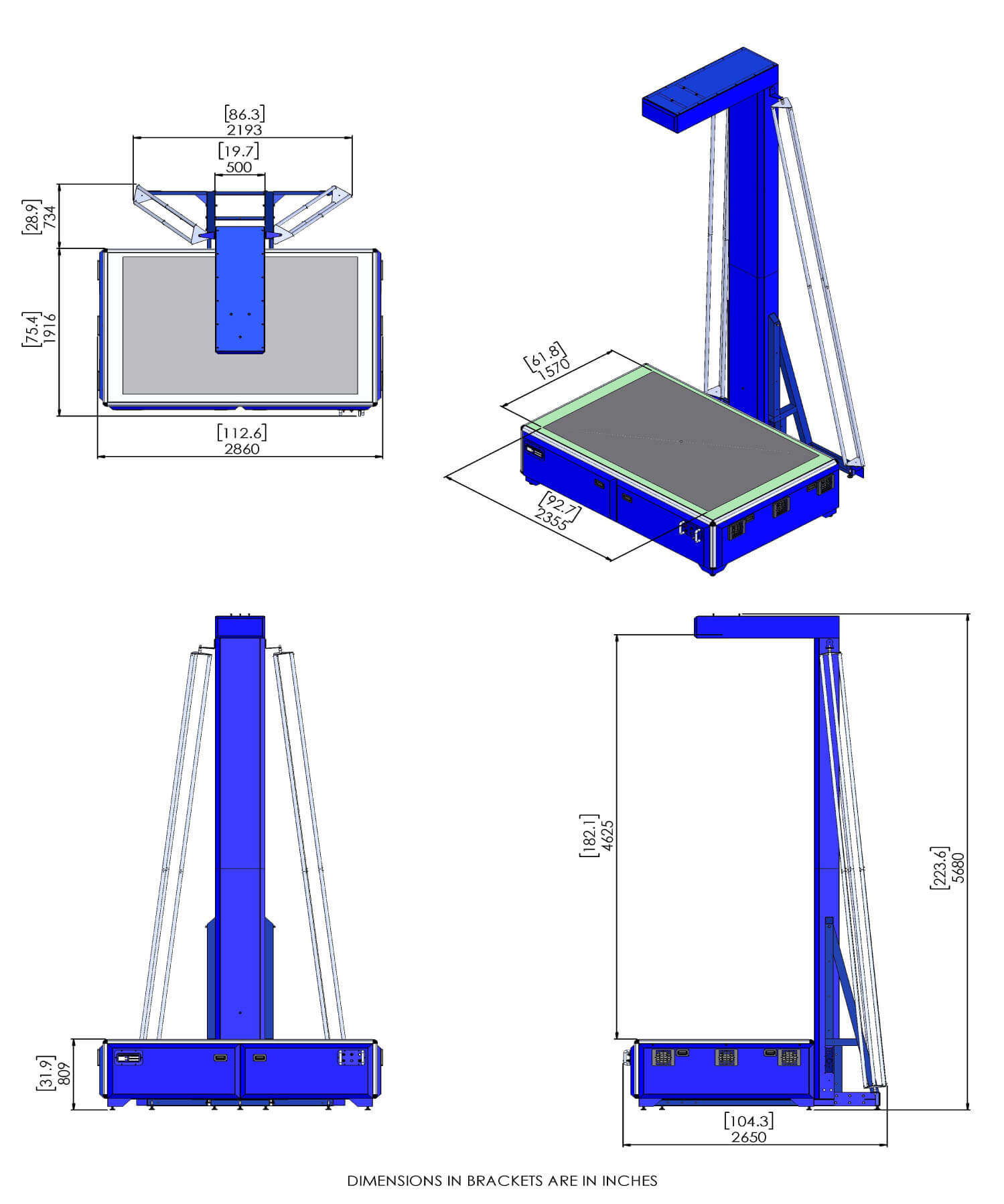

| Approx Footprint/installed width/ depth/ height/ weight of installed Light table and Mast | 2860mm (W) x 2560mm (D) x 5680mm (H) <1450kgs |
| Approx Footprint/installed width/ depth/ height / weight of KVM) | 710mm (W) x 472mm (D) x 1739 (H) <95kgs |
| Standard packing | Export crates suitable for sea shipping (3 nos) |
| Warranty | One year limited warranty on hardware and software |
| Optional extended warranty | Two or three year extended warranty (requires software upgrade option) |
| Software support option | Annual support contract provides free software upgrades |
