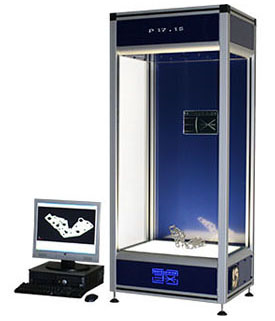

Description | Specification/scope of supply |
Max component length | 500mm |
Max component width | 333mm |
Max component thickness | 120mm |
Max component weight | 100kg – UDL (Uniformly Distributed Load) |
Measuring accuracy, length & width** | +/- 12/25 µm* |
Measuring accuracy, height** (Optional) | +/- 100 µm |
Measuring speed** | <0.25sec |
Camera | Industrialised ultra high resolution professionally mounted in sealed enclosure |
Computer processor | Intel Quad Core |
Processor speed | >3GHz |
Hard disk | >125GB |
Screen | 20 inch flat screen or better |
Peripheral equipment | Keyboard and optical mouse |
Operating software | Windows 10- 64 Bit |
Proprietary InspecVision software | Inspection, SPC, Reporting, Reverse engineering |
Data cable | USB 2 or USB3 |
Computer cabinet (Optional) | Industrial dust-proof enclosure |
Light table construction | Extruded aluminium frame with acrylic cladding |
Light table measuring surface | Laminate glass, toughened with integral diffusion layer |
Light source | High efficiency LED lighting |
Mast construction | Extruded aluminium |
Power supply | 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request |
Power consumption | 6 Amp maximum at 230 Volt, 10 Amp max at 110 Volt |
Control panel | Control switches for power, camera and lights. Main power indicator |
EC directives | Compliant with Machinery, Low voltage and EMC Directives |
Colour | Natural aluminium and blue acrylic |
Ambient operating conditions | 10-30 degree C |

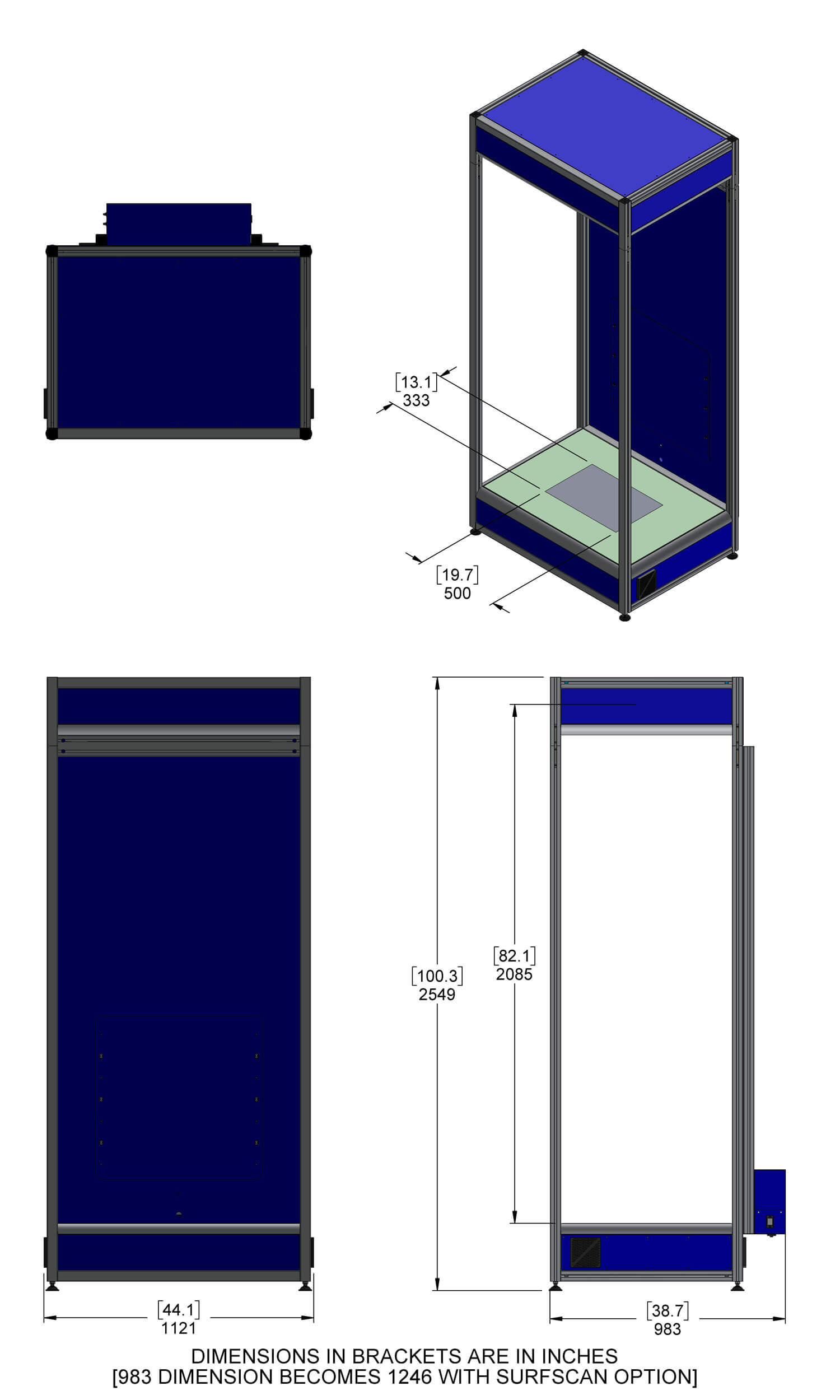

Approx Footprint/installed width/ depth/ height/ weight of installed Light table and Mast | 1121 (W) x 983mm (D) x 2549mm (H) <200kgs |
Approx Footprint/installed width/ depth/ height/weight of installed Computer Cabinet(inc keyboard tray) Optional | 587mm (W) x 900mm (D) x 1675 (H) <100kgs |
Standard packing | Export crates suitable for sea shipping |
Warranty | One year limited warranty on hardware and software |
Optional extended warranty | Two or three year extended warranty (requires software upgrade option) |
Software support option | Annual support contract provides free software upgrades |
