PRODUCT DETAILS

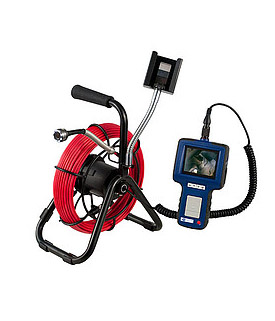

PCE-VE 380N Industrial Borescope
Waterproof downhole video inspection camera or industrial endoscope with 30 m / 98 ft long cable on reel


PCE-VE 380N is an industrial borescope or inspection camera with a handheld monitor that allows you to gain valuable visual insight into the inner workings of machines and other small spaces such as ventilation ducts, drainpipes and downpipes, sewer pipes, chimneys and more.This semi - flexible / semi - rigid waterproof inspection camera is ideal for a variety of industrial and trade applications.With a sleek 28 mm / 1.11 in diameter waterproof camera head, PCE - VE 380N is a user - friendly inspection scope that can handle bends in pipes with diameters of only 90 mm / 3.54 in. Images and video can be stored directly on the device or on the memory card.


***Not for medical use***

  • Camera head with only 28 mm / 1.1'' diameter
  • Camera head waterproof
  • Bright LED lighting
  • Includes handset
  • Push-pull cable on a reel with 30 m / 98ft 5'' length
  • Battery operation
  • SD memory card
  • Supplied in a case complete with centering star

Cable diameter : 28 mm / 1.11 in
Cable length : 30 m / 98 ft
Depth of field : 10 mm … ∞ / 0.4 in to infinity
Field of view : 150.8°
Bending radius : 90 mm / 3.54 in
Illumination : 8 LEDs
Image sensor : CMOS / 640 x 480
Picture rate : 30 / sec.
Display : 88.9 mm / 3.5 in TFT LCD monitor
Interface : Mini USB 1.1 / AV out
Storage options : Image or video
Storage : 8 GB memory card (can be increased to 32 GB)
Compression format : MPEG 4
Picture format : JPEG (640 x 480 pixel resolution)
Video output format : NTSC / PAL
Video format : ASF (320 x 240)
Operation and storage temperature : -10 ... 50°C / 14 ... 122°F
Voltage supply : Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device : 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case : 9.98 kg / 22 lbs
Protection type, camera : IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft
