PCE-VE 350HR3 Industrial Borescope
Two-way articulating inspection camera, industrial endoscope or videoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

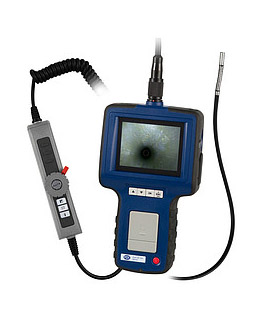

PCE-VE 350HR3 is a two-way articulating industrial borescope, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.The borescope stores the recorded images and videos directly to an SD card memory(included),allowing easy transfer to a PC.The 3 m / 9.8 ft cable length and 6.0 mm / 0.24 in diameter allow the video inspection camera unique access to view the insides of walls,pipes,vents,ducts,engines and machinery,thus eliminating the need for costly and time - consuming dismantling.Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration(HVACR) professionals alike find this video inspection camera useful in a variety of applications.
***Not for medical use***
- With boost function: better images in dark surroundings
- Image rotation possible
- Flexible 3 m / 9ft 10'' cable
- Diameter camera head 6 mm / 0.24''
- Image capture / Photos und Videos
- LED lighting (2 additional side LEDs for better lighting)
- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included
Cable diameter : 6.0 mm / 0.24 in
Cable length : 3 m / 9.8 ft
Depth of field : 1.5 … 10 cm / 0.59 ... 3.94 in
Field of view : 67°
Bending radius : 90 mm / 3.54 in
Illumination : 6 LEDs (4 front, 2 side), automatic
Boost function : For improved image quality in the dark
Image sensor : CMOS
Picture rate : 30 frames per second (fps)
Display : 88.9 mm / 3.5 in TFT LCD monitor
Interface : Mini USB 1.1 / AV out
Storage options : Image or video
Storage : 8 GB memory card (can be increased to 32 GB)
Compression format : MPEG 4
Picture format : JPEG (640 x 480 pixel resolution)
Video output format : NTSC / PAL
Video format : ASF (320 x 240)
Operation and storage temperature : -10 ... 50°C / 14 ... 122°F
Voltage supply : Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device : 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case : 450 g / 1 lb
Protection type, camera : IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).
