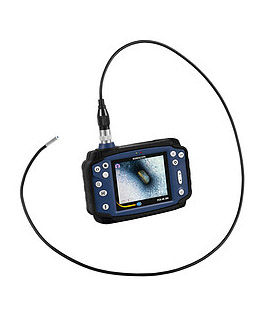

PCE-VE 200 Industrial Borescope
Small diameter (ø 4.5 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price

PCE-VE 200 is an industrial borescope, inspection camera or endoscope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
The borescope stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28' cable length and 4.5 mm / 0.18'' diameter allow the video inspection camera unique access to view the insides of walls,pipes,vents,ducts,engines and machinery,thus eliminating the need for costly and time - consuming dismantling.Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration(HVACR) professionals alike find this video inspection camera useful in a variety of applications.


***Not for medical use***

  • - Waterproof camera head (IP67 protection class)
  • - 4.5 mm / 0.18 in diameter, semi-rigid
  • - 1 m / 3.28 ft cable length
  • - 180° image rotation
  • - 3.5'' LCD display
  • - CMOS chip image sensor
  • - 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
  • - Micro SD card memory
  • - Micro USB 2.0 and TV outputs

Technical Specification

Display : 3.5'' LCD
Resolution video function : AVI (640 x 480)
Resolution image function : JPEG (1600 x 1200)
Image rotation : 180° rotation and mirror function
Freeze function : Yes
Zoom : up to 4-times
Storage medium : Micro SD card
Menu languages : German,English,Spanish,French,Russian,Japanese,simplified Chinese,traditional Chinese
Interfaces : Micro USB 2.0, TV output, Micro SD card slot
TV output : PAL
Power supply : Li-ion battery
Battery capacity : 2600 mAh
Operating conditions : -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 %

Technical Specification of Video Borescope PCE-VE 200 (Borescope cable)

Cable diameter : 4.5 mm / 0.17''
Image sensor : 1/8'' CMOS chip
Resolution camera : 640 x 480 pixel
Camera lighting : 6 white LEDs (intensity can be set)
Field of view / angle of view : 90°
Field of view depth : 15 ... 100 mm / 0.59 ... 3.94''
Length of camera hose : 1 m / 3ft 3''
Pushcable : semi-flexible (semi-rigid spiral)

Environmental conditions of Video Borescope PCE-VE 200

Operating temperature
Probe
In air: -10 … +50 °C / 14 ... 122 °FIn water: +5 … +50 °C / 41 ... 122 °F
Main unit
In air: -10 … +50 °C / 14 ... 122 °F
Relative humidity
Probe and main unit
15 ... 90%
Fluid resistance
Probe and main unit
Machine oil, light oil or cooking salt solution 5 %
Protection against penetration
Probe
Water, oil and dust, according to protection class IP67
Main unit
Rain and wind (battery compartment must be closed)
Not under water
