PRODUCT DETAILS

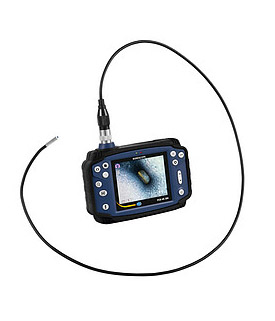

PCE-VE 200-S3 Industrial Borescope
Extra small diameter (ø 3.7 mm) industrial endoscopic video inspection camera with 3 m / 9.8 ft longer length cable provides excellent image quality at an affordable price


PCE-VE 200-S3 is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
The borescope stores the recorded images and videos directly to a micro SD card memory. The 3 m / 9.8 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

  • - Waterproof camera head (IP67 protection class)
  • - 3.7 mm / 0.14 in diameter
  • - 3 m / 9.8 ft cable length
  • - 180° screen rotation
  • - 3.5'' LCD display
  • - CMOS chip image sensor
  • - 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
  • - Micro SD card memory
  • - Micro USB 2.0 and TV outputs

Display : LCD, 3.5''
Resolution : 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video
Screen rotation : 180°
Freeze functionality : Yes
Zoom : Up to 4 times digital image magnification
Menu languages : English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese
Cable diameter : 3.7 mm / 0.14 in cable diameter
Cable length : 3 m / 9.8 ft
Cable rigidity : Semi-flexible (semi-rigid spiral)
Image sensor : CMOS chip
Lighting : 6 white LEDs (adjustable intensity)
Field of view / angle / perspective : 90°
Sight depth : 15 ... 100 mm / 0.59 ... 3.94 in
Storage medium : Micro SD card
Interfaces : Micro USB 2.0, TV output (PAL), Micro SD card slot
Power supply : Rechargeable 18650 Li-ion battery
Battery capacity : 2600-mAh
Battery life : Up to 5 hours from full charge
Operating conditions : Main unit and probe, in air:- 10... 50°C / 14... 122°,rel.humidity 15... 90 %,Probe, in water:5... 50°C / 41... 122°F
Fluid resistance : Main unit and probe:Machine oil,light oil or 5 % saline
Protection against : Main unit:Blowing rain(battery compartment must be closed),not underwater,Probe:Water,oil and dust,according to protection class IP67
