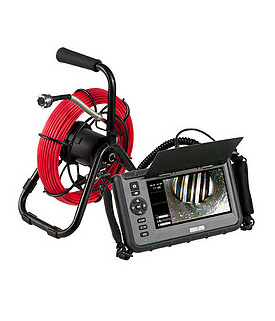

PCE-VE 1030N Industrial Borescope Inspection camera with 30 m / 98 ft long, 28 mm / 1.1 in diameter waterproof semi-flexible push-pull cable on reel / Captures and stores pictures and audio-enabled videos to included SD card memory

PCE-VE 1030N is a versatile industrial borescope inspection camera with a large 7'' high - resolution display.This industrial borescope inspection camera captures both picture and video.Video recordings are accompanied by audio for a more immersive inspection experience.All files are saved to the included SD card memory for quick and easy transfer to a PC.The borescope accommodates an SD card with a maximum capacity of up to 32 GB.For example, an 8 GB SD card would store more than 60, 000 images or 530 minutes of video.The borescope inspection camera comes with a 30 m / 98 ft long, 28 mm / 1.1 in diameter semi - flexible push - pull cable on a reel.The included camera cable is waterproof and the head is equipped with 8 bright LED lights for optimal illumination. In addition, various cables with different lengths, diameters and special features can be connected to accommodate myriad applications.Additional cables are optional and sold separately - see accessories for details.



  • - 28 mm / 1.1 in diameter waterproof camera head with 8 bright LED lights for optimal illumination
  • - 30 m / 98 ft long semi-flexible push-pull cable on reel
  • - Captures and stores pictures and audio-enabled videos
  • - 360° on-screen image rotation (in 90° steps)
  • - SD memory card included

Cable diameter : 28 mm / 1.11 in
Cable length : 30 m / 98 ft
Depth of field : 10 mm … ∞ / 0.4 in to infinity
Field of view : 150.8°
Bending radius : 90 mm / 3.54 in
Illumination : 8 LEDs
Image sensor : CMOS / 640 x 480
Picture rate : 30 / sec.
Display : 7'' LCD(800 x 480)
Image Resolution : 640 x 480 JPEG
Video Recording : 640 x 480 MPEG (with sound recording)
drop test : 1 m / 3.2 ft
Power Supply : Li-Ion battery
Interface : USB
Picture and Video Memory : To SD card (up to 32 GB)
AV Output : NTSC / PAL
Audio Input : built-in microphone
Brightness Setting : 10-step adjustable on the main unit
Runtime per Battery Charge : 5 hours
Charging Time Battery : 3 hours
Charging Temperature : 10 ... 40°C / 50 ... 104°F
Operating Temperature : 0 ... 60°C / 32 ... 140°F
Storage Temperature : 0 ... 60°C / 32 ... 140°F
Protection type, camera : IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft
