eviXscan 3D Heavy Duty Quadro 3D scanner

Heavy Duty Quadro - able to scan in almost any indoor or outdoor conditions

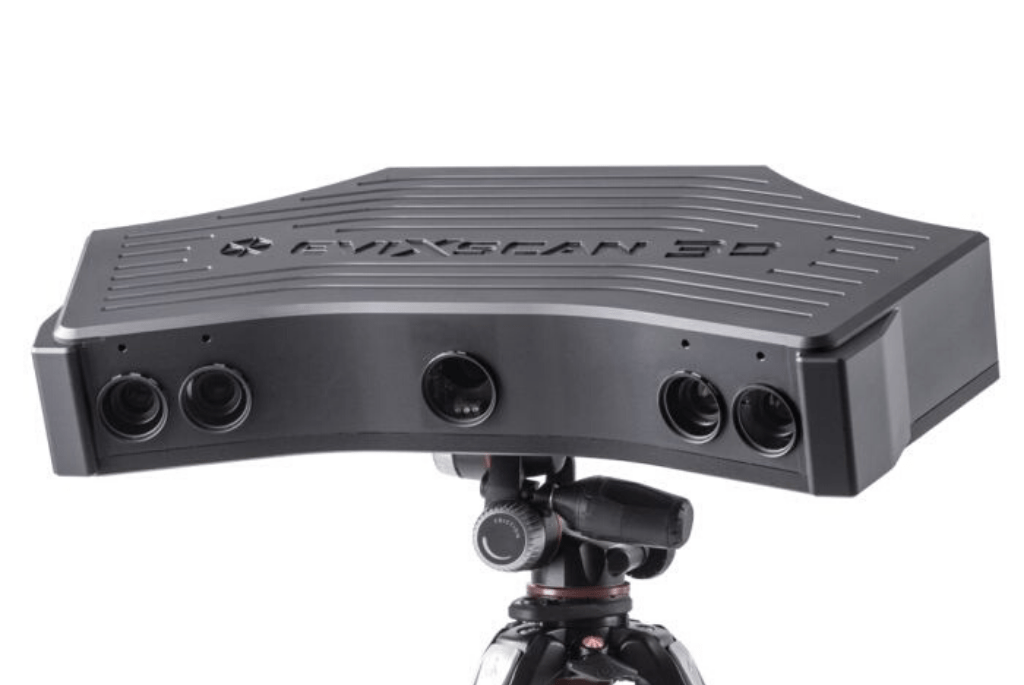

The eviXscan 3D Heavy Duty Quadro is distinguished by sealed, encapsulated housing made entirely of oxidized aluminum, which securely protects the interior of the scanner from accidental mechanical damage, moisture and dust. The scanner's optic is placed on a temperature-resistant carbon fiber beam. This ensures the geometry of the optical system is preserved, even in the case of a sudden temperature change.

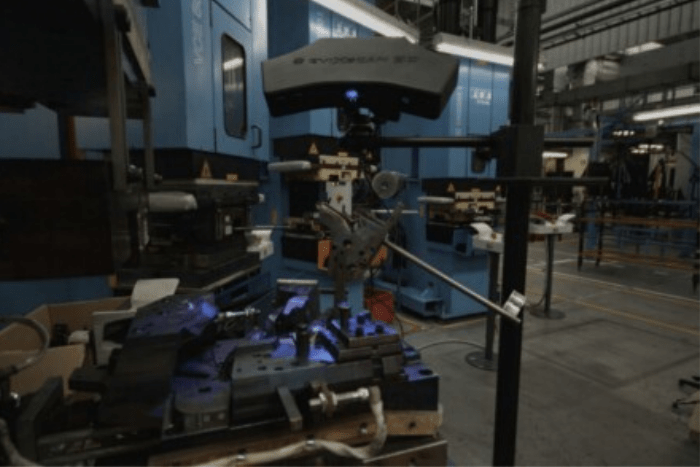

The eviXscan 3D Heavy Duty Quadro scanner is perfect for direct and continuous work on shop floors, production lines and in regularly changing temperature and light conditions, also in outdoor conditions. It is most often used in foundries, tool shops, as well as in automotive and aerospace industry.



Two scanning ranges allow measurement of the geometry of both large objects such as dies and molds, and precision parts such as gears, worms, cams and shafts. Changing the scanning range is done in software, so recalibration is not required.

The compact size of the scanner guarantees the mobility of the entire system, and the head with worm gear - a precise and comfortable way to set the position of the device. Laser pointers facilitate the positioning of the scanner in relation to the scanned object.


Advantages of the Heavy Duty family:


Accuracy, durability, ease of use


High quality lenses and cameras, certified accuracy according to VDI / VDE 2634 Part 2, 4.1 Ps, high mechanical stability of optics systems due to the usage of carbon fibre in the construction, strong light source uses Power LED technology, two scanning ranges in one device, complete system in mobile case, high resistance to dust and humidity, low power consumption, self-calibration option.

Two scanning ranges in one device


The ability to scan in two measuring ranges (narrow and wide) makes the Heavy Duty scanner a versatile device that allows scanning of objects of varying sizes and complexity.

Software


Intuitive eviXscan software in English and Polish, export results to most popular formats (stl, ply, obj, asc, bin), basic point cloud and triangle mesh editing capabilities, software update.

Narrow scanning range


In the narrow range, the cameras are positioned closer together, allowing a measuring range of 210 x 145 x 90 mm. This ensures the highest accuracy and point density. This range is recommended for scanning very complex shapes and small dimensions.

Support


Included in the purchase cost is training for 2 operators, full technical support and a 24-month warranty that can be extended.

Wide scanning range


In this range, the cameras are positioned further apart, allowing a measuring range of 370 x 265 x 150 mm. This ensures the accuracy and density of points needed to scan larger objects.


Applications areas for eviXscan 3D scanners


Reverse engineering


The triangle mesh maps surfaces and forms the basis for creating CAD models of an object. This allows creation of technical documentation for an object. The resulting model can be used to manufacture a replica, or as a starting point for the design of new products or variations.


Quality control


The scanned product is compared with a reference CAD model to create colour deviation maps.This allows accurate verification of tolerances on manufacturing drawings and measurement of elements that are difficult to measure by other methods.


Rapid prototyping


Producing prototypes quickly and cheaply is an important strategy for gaining competitive advantage today. A precision 3D scanner, such as eviXscan 3D Heavy Duty, is an essential part of the rapid prototyping process.

Technical specifications:

eviXscan 3D Optima+ M:

Light source typeBlue LED
Number and type of cameras4 x 5 Mpix
Scanning accuracy according to DE VDI/VDE2634 Part 2, 4.1 Psup to 0.013 mm
Scanning time5 seconds
Measuring rangeOuter: 370 x 265 x 150 mm Inner: 210 x 145 x 90 mm
Points densityOuter: 50 pt/mm2 Inner: 161 pt/mm2
Computer connectionUSB 3.0 + HDMI
Export formatsstl, ply, obj, asc, bin
Hardware requirementsWindows 10 (64 bit), 16 GB RAM, CPU i5
SoftwareeviXscan, eviXscan 3D Suite
Dimensions [mm] 520 x 280 x 95
Weight [kg]7
