PRODUCT DETAILS

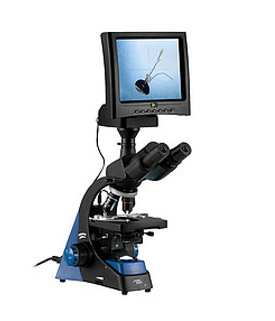

Digital Microscope

High quality digital microscope / Modern and ergonomic tripod / Trinocular /
360° rotating head with adjustable eye relief / Diopteradjustment / LC display

The digital microscope impresses with its diverse application options in teaching and laboratory operations. Due to the technical equipment and great reliability, the digital microscope is particularly well suited to be used in advanced teaching facilities as well as in laboratories. The tripod from the digital microscope consists of the light yet strong material, aluminum, and is modern and ergonomically shaped. The eyepieces are very user-friendly, since both the diopter and the eye relief can be adjusted. This makes it easy for people who wear glasses to work with the digital microscope. There is also a rheostat on the side of our digital microscope with which the brightness can be easily adjusted. The LED light from the digital microscope is very durable and requires little maintenance. The color temperature is similar to that of sunlight, so an examination under the digital microscope is possible that is comparable to that under daylight.
The LCD screen built on the 3rd eyepiece enables viewing of the specimen through the eyepieces and simultaneously on the screen. This allows e.g. when used in schools, the teacher to quickly check the settings and the preparation. As a further option, the screen offers an output option to an external imaging device such as a large screen or projector.


  • - Abbe condenser with adjustable iris
  • - Diopter adjustment on the right eyepiece
  • - Adjustable eye relief
  • - Trinocular
  • - With cross table 125 x 125 mm
  • - 4 lenses up to 100x magnification
  • - LC Display 800 x 600 pixels
  • - Video output

Eyepieces : WF 10x wide field eyepieces
Head : Trinocular, 360° rotatable, 30° angled view, Right diopter adjustment,Interpupillary distance adjustable 55 ... 75 mm
Lenses : 4
Magnification : 4x, 10x, 40x, 100x
Numerical aperture : 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm
Focal length : 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm
Working distance : 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm
Coverslip : 0.17 mm
Total magnification eyepiece + lens : 40, 100, 400, 1000
Tube length : 160 mm
Conjugate distance : 195 mm
Cross table : 125 x 125 mm
Shift : 40 x 60 mm
Hub : 14 mm

Condenser

Cover : yes
Adjustment : yes
Filter : yellow, green, blue
Lighting : 3.5 V 1 W LED
Dimmable : yes

Technical Data Camera / Display
Camera

Size : 13''
Horizontal resolution : 700 lines
Resolution : 976 x 582 pixels

LCD Display

Resolution : 800 x 600 pixels
Colours : 16777216
Video output highest resolution : 1024 x 768 at 75 Hz
Video Format : PAL, NTSC4.43, NTSC3.58, SECAM

General Technical Data

Power supply : 230 VAC 50 Hz
Environmental conditions : 0 ... 40 °C / 85 % RH. max.
Dimensions : 550 x 320 x 210 mm
Weight : 5100 g
